    Vertical Molding Machine for Precision Casting

    Product Description

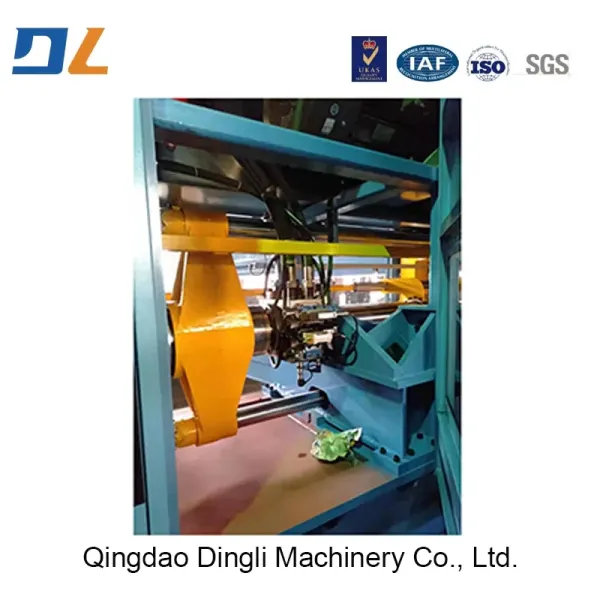

    Vertical Molding Machine
    The Vertical Molding Machine is a fully automatic molding system featuring vertical parting and double-face sand compaction (or air-precompaction + squeeze), engineered for high-volume, high-efficiency casting production. With the pattern mounted vertically and flasks closing from top to bottom, the mold cavity forms along the vertical axis—ideal for small-to-medium, complex-geometry castings with uniform wall thickness, such as engine blocks, brake discs, pipe fittings, and pump/valve housings in gray iron, ductile iron, or steel. Capable of 300–600 molds per hour, it serves as the cornerstone of modern green and smart foundries.
    Working Principle
    Sand Filling: Pre-metered sand drops into upper and lower flasks.
    Pre-Compaction (optional): High-pressure air flows through the sand for initial uniform distribution.
    Double-Sided Squeeze: Upper and lower rams apply synchronized pressure (80–150 bar) to form molds with high hardness (HB 90–95) and excellent repeatability.
    Pattern Withdrawal & Closing: The pattern strips vertically; the top flask flips 180° and aligns precisely with the bottom flask.
    Automatic Transfer: Closed molds are conveyed via roller tables or robots to the pouring station.
    Vertical Molding Machine for Precision Casting
    Vertical Molding Machine for Precision Casting
    Vertical Molding Machine for Precision Casting
    Vertical Molding Machine for Precision Casting
    Vertical Molding Machine for Precision Casting
    Vertical Molding Machine for Precision Casting
    Vertical Molding Machine for Precision Casting
     Key Advantages
    High Throughput, Labor Savings
    Replaces 10–15 manual molders. Cycle time as fast as 6–10 seconds/mold, enabling annual output of 500,000–1,000,000 molds—dramatically reducing labor cost per casting.

    Superior Mold Accuracy & Casting Consistency
    Vertical parting eliminates mold mismatch. Uniform compaction delivers dimensional accuracy to CT8–CT10 and surface roughness Ra ≤50 μm, minimizing fettling and scrap.

    Saves Sand & Floor Space
    No runner waste in horizontal direction; optimized gating reduces sand consumption by 15–25%. Footprint is only 1/3 of horizontal lines—ideal for retrofitting existing foundries.

    Fully Automatable & Industry 4.0 Ready
    Seamlessly integrates with auto-pouring, cooling, shot blasting, and robotic stacking. Equipped with MES/ERP interfaces for full-process data tracking and remote monitoring.

    Eco-Friendly & Energy Efficient
    Enclosed operation minimizes dust emission (with dust extraction port). 30% lower energy consumption vs. jolt-squeeze machines—compliant with green foundry standards.
    Main Technical Specifications

    Parameter
    Value
    Molding Type
    Vertical parting, double-sided squeeze
    Flask Size
    Customizable up to 1200×1000 mm
    Squeeze Force
    800–2500 kN
    Mold Hardness
    HB 90–95
    Cycle Time
    6–12 sec/mold
    Capacity
    300–600
    Air Pressure
    0.6–0.8 MPa
    Control
    PLC + HMI with recipe management
    Communication
    Ethernet, Modbus TCP, ProfiNet
    Typical Castings
    Automotive: Brake discs, hubs, steering knuckles, transmission cases
    Pipe & Valve: Ductile iron fittings, flanges, valves, water meter bodies
    General Machinery: Compressor blocks, motor end shields, gearbox housings
    Energy: Small wind power components, hydraulic parts, pump casings
